Product Specifications¶
Overview¶
This high-performance server platform is designed for demanding enterprise and industrial applications. Featuring the latest Intel® Xeon®6 Processor with advanced security acceleration and robust networking capabilities, it ensures reliability, scalability, and efficiency. The system supports up to 512GB DDR5 ECC memory, multiple PCIe Gen5 expansion slots, and flexible storage options including NVMe and M.2. Built for harsh environments, it offers wide temperature tolerance, redundant power supplies, and compliance with stringent safety and EMC standards.
Key Highlights¶
Processor: Intel® Xeon®6 6710E, 64 cores / 64 threads, 2.4GHz
Memory: DDR5 ECC, up to 512GB across 8 DIMM slots
Networking: Dual 1GbE and dual 10GbE ports with SR-IOV support
Storage: 4x U.2 NVMe hot-swappable bays + 1x M.2 PCIe Gen5 slot
Expansion: PCIe Gen5 slots for high-speed add-on cards
Environmental: Operates from -40ºC to 55ºC, IP30-rated chassis
Certifications: CE/UKCA, FCC Class A, RoHS, EN50121-4, IEC-61850-3
Technical Details¶
Feature |
Specification |
Details |
|---|---|---|
Processor |
CPU |
Intel® Xeon®6 Processor 6710E 64C/64T, 2,4GHz Single Socket |
BIOS |
AMI SPI Flash BIOS |
|
Security Acceleration |
Intel® QuickAssist Technology |
|
Memory |
System Memory |
DDR5, ECC, up to 512GB |
Socket |
8x 288-Pin DIMM |
|
Networking |
Ethernet |
2x 1GbE RJ45, 2x 10GbE RJ45 w/SRIOV |
LOM/OOB |
1x RJ45 IPMI LOM Port |
|
Storage |
HDD/SSD |
4x 2.5” U.2 NVMe Hot-Swappable Drive Bays |
M.2 Storage |
1x M.2 2280/22110 M-Key for NVMe (PCIe Gen5) |
|
Expansion |
PCIe |
2x FHFL (Double-Width) PCIe Gen5*16 |
1x FHHL (Single-Width) PCIe Gen5*8 |
||
1x FHHL (Single-Width) PCIe Gen5*4 |
||
I/O Interfaces |
Button |
1x Reset Button |
LED Indicators |
Power/Status/HDD/LAN/LOM LED Indicator |
|
USB |
4x USB 3.1 Ports & 1x USB 3.1 Port with Key Lock |
|
Console Port |
1x 1GbE RJ45 Console Port |
|
Display |
1x VGA Port |
|
Miscellaneous |
Watchdog |
Yes |
Internal RTC |
Yes, with Li Battery |
|
TPM |
TPM 2.0 Onboard |
|
Power |
Type/Watts |
Dual power Input Up to 750W each |
Input |
100~240VAC / 110~240VDC |
|
Cooling |
Processor |
Passive CPU Heatsink |
System |
3x Smart Cooling Fans |
|
Enviromental |
Temperature |
-40ºC ~ 55ºC |
Humidity (RH) |
Operating: 5% ~ 90% |
|
Non-Operating: 5%~95% |
||
Mechanical |
Dimension |
438 x 131.8 x 455 mm |
Weight |
TBD |
|
Form Factor |
3U 19” Rackmount, IP30 |
|
Certifications |
EMC |
CE/UKCA, FCC Class A, RoHS, MTBF |
Safety |
EN50121-4, UL+CB, IEC-61850-3, IEEE 1613 |
|
Driver Support |
OS |
Linux |
Important Notes¶
Operating Conditions: Ensure proper airflow and cooling in rack environments to maintain optimal performance within specified temperature and humidity ranges.
Power Redundancy: Dual power inputs are recommended for high-availability deployments.
Firmware Updates: Regular BIOS and firmware updates are essential for security and stability.
Storage Configuration: NVMe drives should be installed according to manufacturer guidelines for hot-swapping.
Compliance: Verify local regulatory requirements for EMC and safety certifications before deployment.
Maintenance: Replace Li battery for RTC as per recommended lifecycle to avoid timekeeping issues.

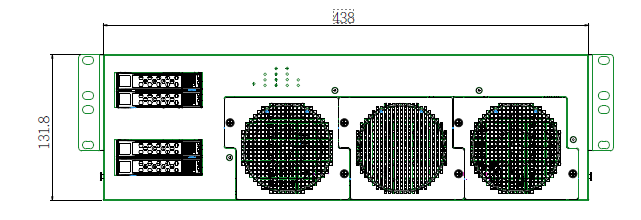

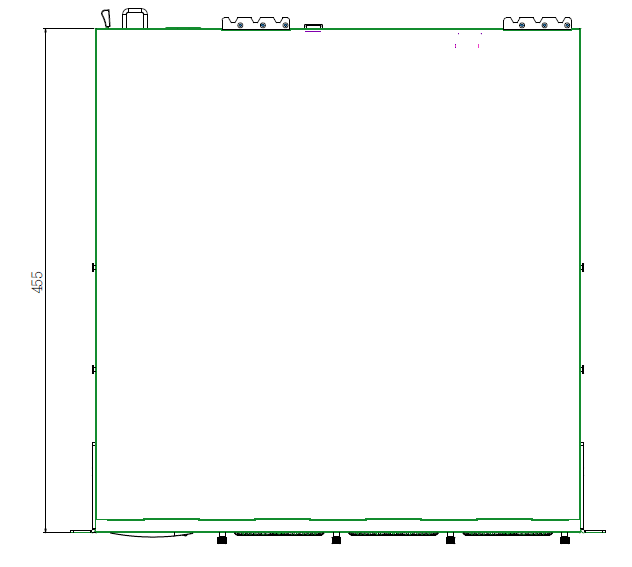

Dimension Drawings¶
Lenght-455 cm
Height-131.8 cm
Width-438 cm
